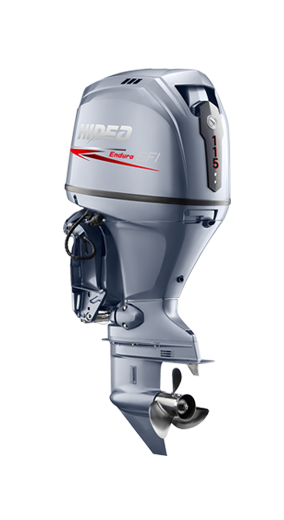

Commercial EF115

Model HDEF115
Max. output(kw) 84.6
Max. RPM range 5000-6000
Stroke 4
Cylinder 4
Displacement(cc) 1832
Bore x Stroke(mm) 81X88.9
Weight(kg) L:180  X:184
Gear ratio 28:13(2.15)
Gear shift position F-N-R
Ignition system ECM
Cooling system Water cooling
Starting system Electric start
Control system Remote control
Tilt Electric trim
Standard capacity of fuel tank (L)

Optional models:

HDEF115FEL-T

HDEF115FEX-T

HDEF115HEL-T

HDEF115HEX-T

HDEF115FEL-LT(counter)

HDEF115FEX-LT(counter)

Advantages:

· ECU electronic fuel injection control system, more complete combustion, better emissions and fuel economy performance;

· Precise cylinder judgment technology (MAPCID), eliminating the camshaft phase sensor, different from the fuzzy cylinder judgment commonly used in the industry;

· High temperature, high cold and high altitude “three highs” precise adjustment, good environmental adaptability and starting performance;

· Industry-leading anti-corrosion technology, good resistance to seawater corrosion;

· Large gearbox used underwater, good durability;

· Main components are reinforced, very suitable for commercial use;

· Forward and reverse machines are available;

· Able to connect with NMEA2000 system;

· EU CE and US EPA certification.
